Equipped with RICOH GEN5 Print Head
High density nozzles, as many as 1280 nozzles, Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 3PL ink drop size, with a high resolution.
Certificated Ink
Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.
High Precision Printer Head Base Board
Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.
Stable Accessories
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.
Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.
Printer Head Anti-Collision System
Printer Head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.
Model No.
YGF UV2513
UV Curing System
UV LED Water Cooling System
Materials to Print
metal, plastic, glass, wood, ceramics, acrylic, leather, pen, etc.
Max. Print Format
98.43"*51.18" (2500*1300mm)
Max. Print Gap
10cm(3.94'')
Power Consumption
3200W
Power Requirement
50/60HZ 220V(±10%)<20A
Environment
20 ~ 28C HR40-60%
Print Head
RICOH GEN5 (Nozzles 640X2), printer heads can be 3~8pcs.
RIP Software
SAi PhotoPrint DX Plus
Software Language
English/Chinese/German/Italian/Japanese/Korean/French/Finnish/Dutch/Portuguese/Spanish
Operation System
Windows 7 /Windows 8 /Windows10
Ink Type
UV ink
Ink Color
KCMYWW /KCMYLcLmWW /KCMYLcLmWWVV
Ink Supply System
CISS Built Inside With Ink Bottle
Interface
USB3.0
Machine Gross Weight
1400kg
Packing Dimension
467*227*170cm

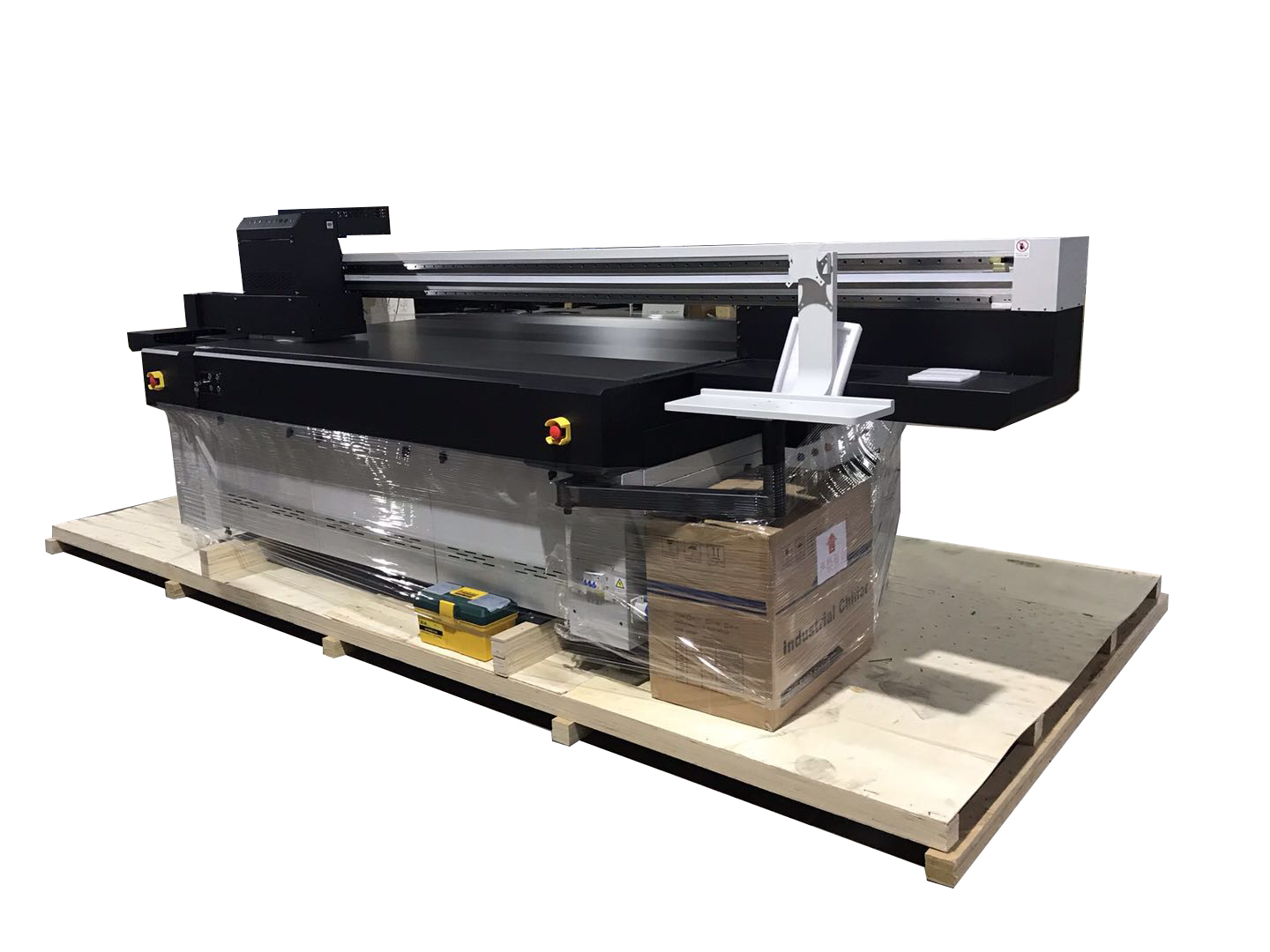

Packing
Strong Wooden Package with Full Foam
YGF UV 2513 flatbed printers are widely used in a variety of industries:
Advertising industry: ABS, Polyurethane, PET, Acrylic, MDF, PVC, etc,
for signs, banner, backlight, tags, etc.
Leather industry: Authentic leather, fake leather, PU, etc. for shoes, bags, cases, etc.
Background wall: Glass, tiles, aluminum, wood, paper, etc.
Furniture industry: Wood, glass etc. for cupboard, sofa, doors, etc.
Electronic accessories: Mobile phone cases, industrial products cases, etc.
Gifts printing: Plastics, USB memory card, Stone, Pens, name card case,
glass arms, wrist watch belt, wrist bands, etc.
Decoration: Exhibition stand decoration, home decoration, wallpaper, hotel decoration, etc.
Industrial printing: membrane switch, touch panel, home appliance printing, etc.
